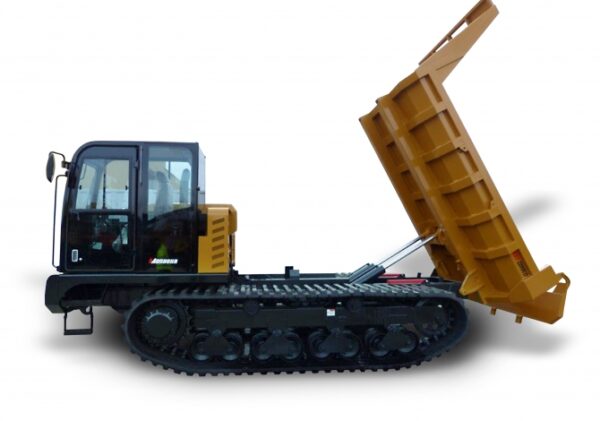

Morooka MST 2200VD

The Morooka MST2200VD tracked dumper is benefited by 750mm wide rubber tracks and a very powerful pair of drive motors.

The machine’s strong undercarriage is designed to follow ground contours, and the track flexes up and down for added flexibility and fit. To ensure that the crawler always contacts the ground it uses eight tandem bottom rollers suspended on each side of the undercarriage.

The sprockets which drive the rubber tracks are mounted in a high position and this feature provides a large wrap angle offering a positive drive at all times. The 11-tonne muck-away payload is transported in a rock body with an auto-locking tail-gate.

The Morooka MST220VD is powered by a fuel-efficient Cummins engine providing all the power directly to drive the hydrostatic pumps.

If you would like any more information on M OBrien Plant hires Nationwide hire service please do not hesitate to contact us by:
Phone: 01582 840045
Email: [email protected]

Download Morooka MST2200VD Tracked Dumper spec sheet



SKU: MST2200VD-1 Category: Tags: , , ,

Description

If you would like any more information on M O’Brien Plant hires Nationwide hire service please do not hesitate to contact us by:
Phone: 01582 840045
Email: [email protected]

Additional information

Unladen Weight

14100Kg

Payload

11000Kg

Width

2850mm
